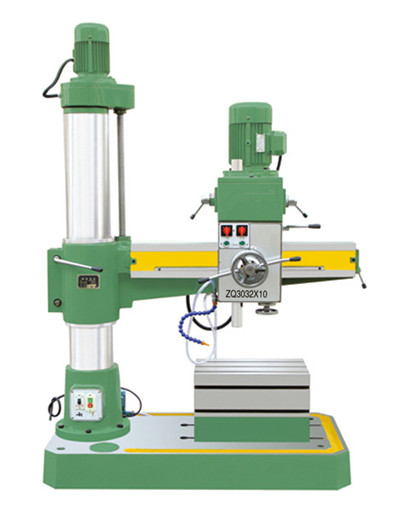

ZQ3032 radial drilling machine
    ZQ3032 radial drilling machine

Product Description:

Item
ZQ30 32x10
max drilling dia(mm)
32
distance from spindle nose to table surface(mm)
220-980
distance between spindle axis and column face (mm)
260-780
spindle travel
120
spindle cone
4
spindle speed range (r,p,m)
108,162,262,398,665,1000
spindle feeding range(r,p,m)
0.10,0.16,0.25
rocker rotary angle
360
main motor power(kw)
1.5
movement motor power
0.55
net weight (kg)
1080
overall dimension(mm)
1400*660*2060
