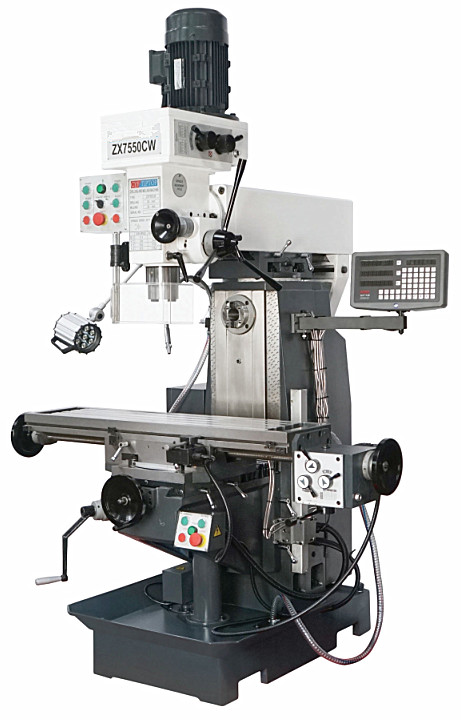

ZX7550CW drilling and milling machine
    ZX7550CW drilling and milling machine

Product Description:



Model

ZX7550CW

Max.drilling dia

30mm

Max.end milling width

100mm

Max vertical milling dia

25mm

Distance from spindle nose to table surface

60-360mm

Spindle speed range

115-1750rpm(v)/60-1350rpm(H)

Spindle travel

120mm

Worktable size

800x240mm(1000x240)

Table travel

400x230mm(580x230)

Motor power

0.85/1.5(V)/1.5(H)Kw

Weight

850/950kg

Packing size

1340x1140x2245mm
