Model

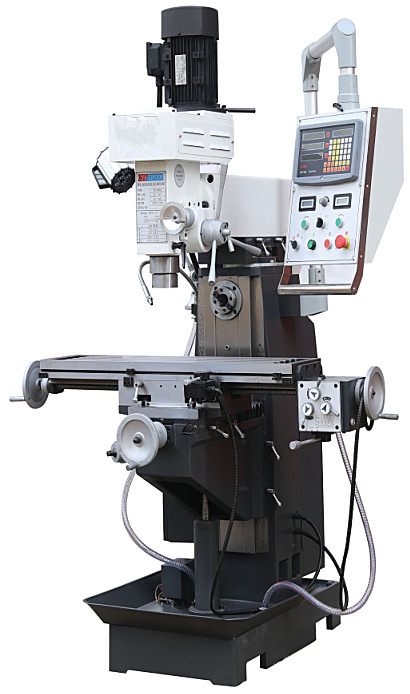

ZX7550BV

Max.drilling dia

30mm(R8)

Max.end milling width

100mm

Max vertical milling dia

25mm

Distance from spindle nose to table surface

70-370mm

Spindle speed range(rpm)

190-2200(V)/25-1630(H)

Spindle travel

120mm

Worktable size

800x240mm(1000x240)

Table travel

400x230mm(580x230)

Motor power

2.2(V)/1.5(H)Kw

Weight

850/950kg

Packing size

1340x1140x2245mm
