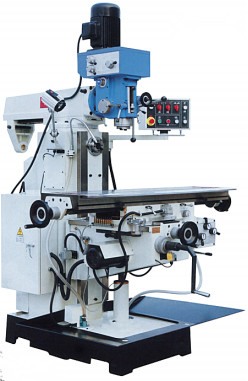

ZX6350ZA/X6332Z drilling and milling machine
    ZX6350ZA/X6332Z drilling and milling machine

Product Description:

Model

X6332Z

ZX6350ZA

Spindle taper

ISO40

ISO40

Distance from spindle to table(mm)

90-490

90-370

Distance from spindle to column(mm)

200-550

200-550

Spindle speeds

90-2000r.p.m(V)

40-1300r.p.m(H)

90-2000r.p.m(V)

40-1300r.p.m(H)

Table size(mm)

1370x320

1250x320

Table travel(horizontal/cross/vertical)(mm)

720/300/400

600/300/280

T slot number/width/distance(mm)

3/14/70

3/14/70

Feeding range of longitudinal,cross travel(mm)

22-555

22-555

Auto feeding of Z-Axis

560

560

Main motor power(Kw)

2.2

2.2

X axis driving motor(W)

370W

370W

Overall dimension(mm)

1700x1500x2270

1600x1500x2270

NW/GW(Kg)

1700/1880

1550/1700
