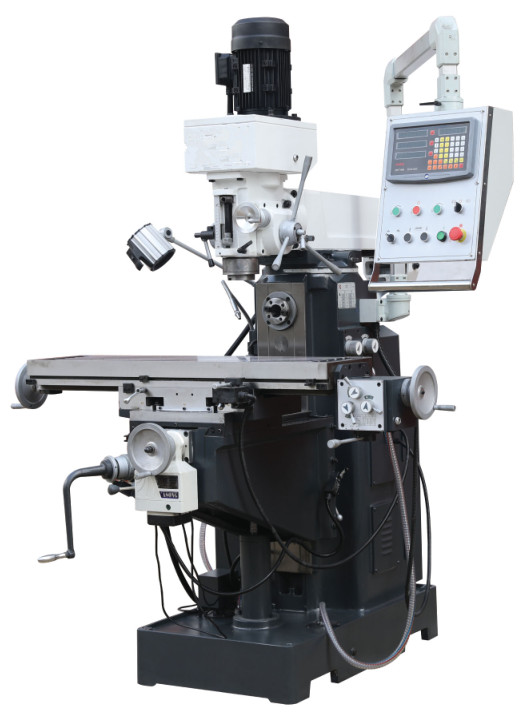

ZX6350Z drilling and milling machine
    ZX6350Z drilling and milling machine

Product Description:



Model

ZX6350Z

Table size(mm)

280x1120(280x1270)

Long travel(mm)

600(750)

Cross travel(mm)

270

Vertical travel(mm)

360

T slot number and size(mm)

3x16(5x14)

Distance between spindle axis and column surface

230-630

Distance from spindle nose to table surface(mm)

120-480

Spindle hole taper

ISO40/ISO30/R8/MT4

Spindle travel(mm)

120

Spindle speed range(rpm;50Hz/60Hz)

90-2000/108-2400(V)

40-1300/48-1560(H)

Spindle motor(kw)

2.2Kw(V) 2.2Kw(H)

Head swivel

±45°

Package size(mm)

1700x1450x2245mm

Weight(kg)

1350/1450
