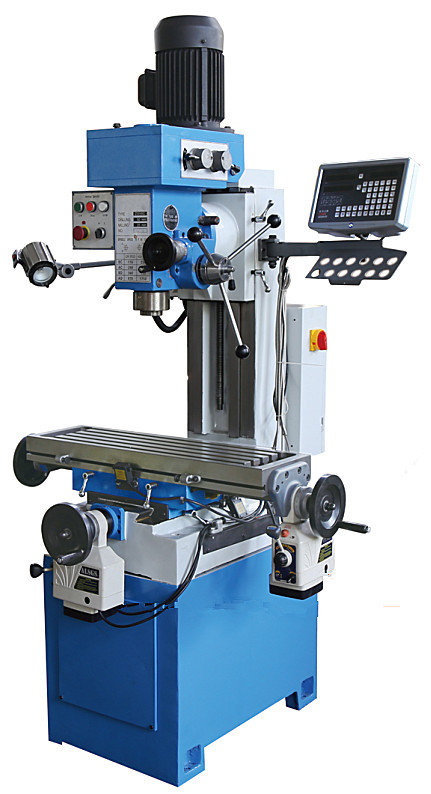

ZX50CF drilling and milling machine
    ZX50CF drilling and milling machine

Product Description:



Model

ZX50CF

Max drilling diameter(mm)

50

Max horizontal milling diameter(mm)

100

Max vertical milling diameter(mm)

25

Max boring diameter(mm)

120

Max tapping diameter(mm)

M16

Spindle taper

MT4 ISO30

Spindle speed range(R.P.M)

115-1750(8)

Spindle travel(mm)

120

Table size(mm)

800X240

Table travel(mm)

400X230X380

Main Motor Power(Kw)

0.85/1.5

NW/GW(Kg)

500/600
