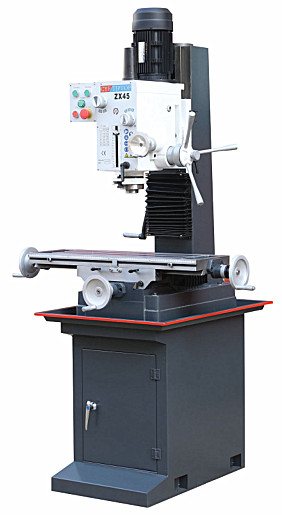

ZX45/ZX45L drilling and milling machine
    ZX45/ZX45L drilling and milling machine

Product Description:

Specifications

ZX45

ZX45L

Max.drilling capacity(Iron/steel)

Φ45/32mm

Max.milling capacity(face milling)

Φ80mm

Max milling capacity(end milling)

Φ32mm

Max distance spindle to table

460mm

Spindle travel

120mm

Spindle taper

MT4/R8

Spindle speed steps

75-1600rpm,6steps

Max swing of headstock

±45°

Worktable size

800x240mm

1000x240mm

Working table longitudinal travel

560mm

760mm

Working table transverse travel

190mm

Motor power and speed

1.5kw 1450rpm

Packing size

850*760*1150mm

1220760*1150mm

Weight

325/350kg

350kg/380kg
