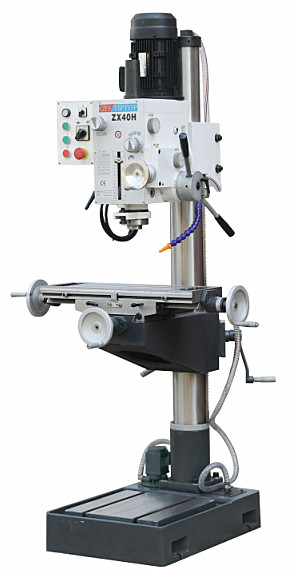

ZX40H drilling and milling machine
    ZX40H drilling and milling machine

Product Description:



Specifications

ZX40H

Max.drilling capacity(Iron/steel)

Φ40/30mm

Max milling capacity(end milling)

Φ32mm

Spindle taper

MT3/MT4/R8

Base dimension

650x450mm/670x470mm(water tank)

Spindle speed

75-1600rpm 6steps(50hz)

Distance spindle to column

278mm

Worktable size

600x190/730x210mm(optional)

Worktable travel

360(X)x200(Y)/490(X)x180(Y)mm

Spindle travel

120mm

Diameter of column

115mm

Max distance spindle nose to table

610mm

Max distance spindle nose to base

1180mm

Motor power

1.5kw

Packing size

830*760*1885mm 950*760*1885mm

Weight

350/385kg 365/400kg
