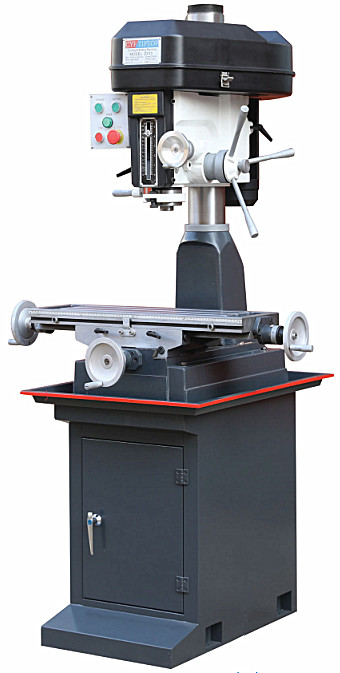

ZX30 drilling and milling machine

Home
About us
Products
News
Feedback
Contact us

Product Description:

Specifications	ZX30
Max.drilling capacity(Iron/steel)	Φ30/25mm
Max.milling capacity(face milling)	Φ76mm
Max milling capacity(end milling)	Φ20mm
Max distance spindle to table	440mm
Spindle travel	120mm(auto feed106mm)
Spindle taper	MT3/R8
Spindle speed range	100-2080rpm
Worktable size	730x210mm
Working table longitudinal travel	500mm
Working table transverse travel	210mm
Motor power	1.5Kw 1450rpm
Packing size	9507601150mm
Weight	280/310kg

supply hydraulic press,radial drilling machine,Pan&Box folder,Shearing machine,rolling machine with high quality and competitive price.hope to cooperate with you.
