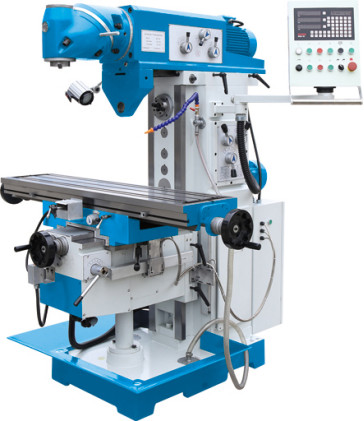

Specifications

Unit

XQ6432A

XQ6432C

Table size

mm

1370*320

T-slots(NO./width/pitch)

mm

3*14*80

Max table travel - X/Y/Z

mm

820/300/400

1000/380/400

Spindle taper

-

7:24  ISO40

Max rotary angle of table

-

Distance between spindle center line and table surface

mm

75-475

Distance between spindle nose and table surface

mm

260-660

Distance from horizontal spindle center line to arm surface

mm

180

Spindle speed range

r.p.m

(V)11 steps 45-1660; (H)12 steps 35-1500

Arm travel

mm

400

Table feed(X/Y/Z)

mm/min

X Y:30-830 Z: 23-625

Table rapid speed

1335/1335/1000

Main motor power

Kw

3

Torque of X/Y/Z axis AC servo motor

Nm

10

Cooling pump motor power

W

40

Flow of cooling pump

L/m

12

Overall size

mm

1820*1680*1860

1820*1680*1860

Net weight

Kg

1900

1950
