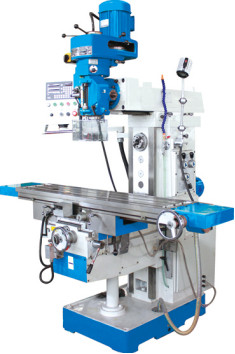

XQ6332 turret milling machine
    XQ6332 turret milling machine

Product Description:



Specifications

Unit

XQ6332A

XQ6332C

Table size

mm

1370X320

1370*320

Table travel (X/Y/Z)

mm

820/300/400

1000/380/400

Rapid speed of table (X/Y/Z)

mm/min

1335/1335/1000

Spindle taper



5HP: ISO40





Horizontal :  IS040

Table feed (X/Y/Z)

mm/min

XY:30-830  Z:23-625

Distance between horizontal nose and table surface

mm

75-475

Distance between spindle axis and ram surface

mm

200

Spindle speed range



65-4660 (16steps)(V)





12 steps 35-1500(H)

T-slots(No./width/pitch)

mm

3/14/80

Arm travel

mm

450

Main motor power

---

5HP





Horizontal : 3Kw

Torque of X/Y/Z axis AC servo motor

N.m

10

Overall size

mm

1821680×2350

1821680×2350

Net weight

kg

1730

1780
