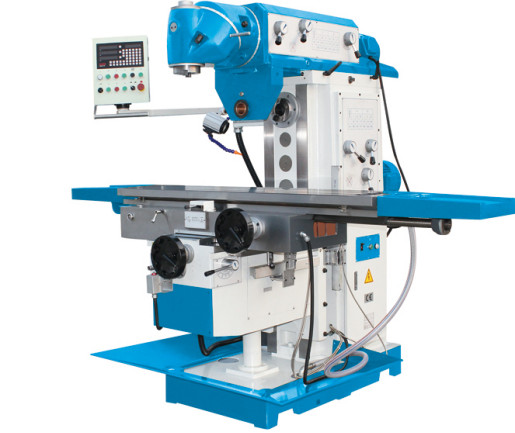

Specifications

Unit

XL6436C

XL6436CL

Table size

mm

1325×360

1600×360

Table travel (X/Y/Z)

mm

1100/320/450

1300/320/450

Table feed(X/Y/Z)

mm/min

30~750/20~500/15~375

Spindle taper

7：24 IS050 (H)  7：24 IS050 (V)

Arm travel

mm

550

Distance between spindle nose and table surface

mm

196-646

Distance between horizontal nose and table surface

mm

20-470

Distance between spindle and arm

mm

200

Spindle speed range

r.p.m

12steps 60-1750 (V) 12steps 60-1800 (H)

T-slots(NO./width/pitch)

mm

3/18/70

Main motor power

Kw

5.5 (H)  4 (V)

3 to feed Ac servo motor torque

N.m

10

Overall size

mm

2245×2100×2000

2520×2100×2000

Net weight

kg

2700

2750
