Specifications

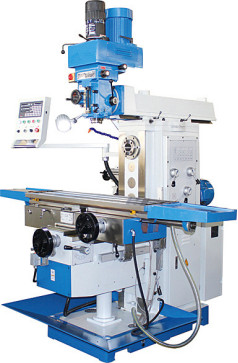

XL6336CL

XL6336CL

Table size(mm）

1325×360

1600×360

Table travel (X/Y/Z)(mm)

1100/320/450

1300/320/450

Table feed. (X/Y/Z)(mm/min)

30-750/20-500/15-375

Table rapid speed (X/Y/Z)(mm/min)

1200/800/600

Spindle taper

7：24 IS050 (H)    7：24 IS040 (V)

Stroke of spindle quill(mm)

127 (V)

Distance between spindle nose and table surface

200-650

Distance horizontal spindle center line and table surface

20-470mm

Distance horizontal spindle center line and arm surface

245mm

Spindle speed range(rpm)

12steps 60-1800 (H) 16 steps 65～4660 (V)

T-slots(NO./width/pitch)(mm)

3/18/70

Arm travel(mm)

550

Main motor power(kw)

5.5 (H)卧   3.7 (V)立

Torque of X/Y/Z axis AC servo motor(N.m)

10

Overall size(mm)

2245×2100×2500

2520×2100×2500

Net weight(kg)

2780

2850
