Item |
Unit |

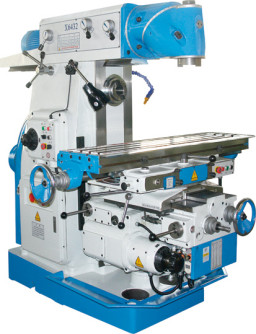

X6432 |
X6432A |
Table size |
mm |
320×1325 |
320×1600 |
Max Longitudinal travel(manual/auto) |
mm |
700/680 |
900/880 |
Max transverse travel(manual/auto) |
mm |
255/240 |
|
Max transverse vertical travel(manual/auto) |
mm |
320/300 |
|
Max rotary angle |
|
±45° |
|
T Slots(N*W*D) |
|
3/18/70 |
|
Spindle hole taper |
mm |
7:24 ISO50 |
|
Distance of Horizontal spindle axis to table surface |
mm |
30~350 |
|
Distance of table center to vertical spindle |
mm |
190~510 |
|
Distance of table center to vertical ways of column |
mm |
470~215 |
|
Distance of table center ram |
mm |
155 |
|
Speed steps |
|
(V):12 (H):18 |
|
Spindle speed range |
r.p.m |
(V:)60~1750 (H:)30~1500 |
|
Table feed steps |
|
18 |
|
Table feed range Longitudinal |
mm/min |
23.5~1180 |
|
Table feed range cross |
mm/min |
23.5~1180 |
|
Table feed range vertical |
mm/min |
8~394 |
|
Table rapid moving speed Longitudinal/cross |
mm/min |
2300 |
|
Table rapid moving speed vertical |
mm/min |
770 |
|
Power of spindle |
Kw |
(V:)4 (H:)7.5 |
|
Spindle of motor range |
r.p.m |
1440 |
|
Feed motor |
Kw |
1.5 |
|
Feed of motor range |
r.p.m |
1440 |
|
Net Weight |
Kg |
2900 |
3000 |
Overall sizes |
mm |
2294×1770×1780 |
2294×2050×1780 |
