Model

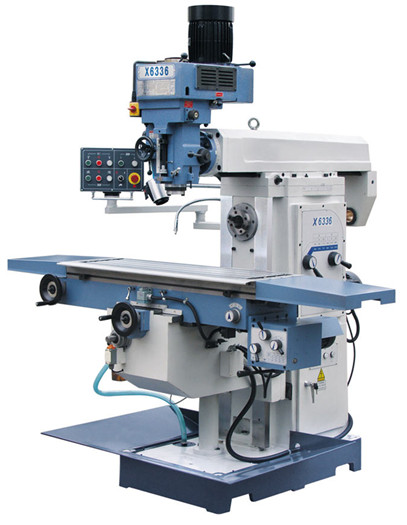

X6336

Table size(mm)

1370x360

Table travel (X/Y/Z)(mm)

1000/320/400

Rapid speed of table(X/Y/Z)(mm/min)

1000/1000/400

Spindle taper

vertical

NT40

horizontal

NT50

Table feed(X/Y)(mm/min)

15-370/15-370

Distance horizontal nose and table surface

0-400mm

Distance spindle axis and ram surface

270mm

Spindle speed range(rpm)

Vertical

50-3750(variable)

66-4540(16steps)

Horizontal

60-1800(12steps)

T-slots(No./width/pitch)(mm)

3/18/80

Arm travel(mm)

600

Main motor power

Vertical

5

Horizontal

4kw

Overall size(mm)

2070x2020x2350

Net weight(kg)

2200
