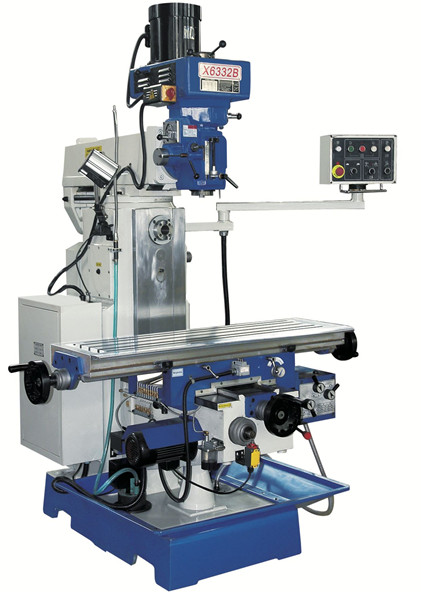

X6332 Turret milling machine
Product Description:
Model |
X6332 |
|
Table size(mm) |
1250x320 |
|
Table travel (X/Y/Z)(mm) |
600/300/420 |
|
Rapid speed of table(X/Y/Z)(mm/min) |
1000/1000/400 |
|
Spindle taper |
vertical |
R8/NT40 |
|
horizontal |
NT40 |
Table feed(X/Y)(mm/min) |
15-370/15-370 |
|
Distance horizontal nose and table surface |
0-400mm |
|
Distance spindle axis and ram surface |
210mm |
|
Spindle speed range(rpm) |
Vertical |
80-4200(variable) |
|
|
66-4540(16steps) |
|
Horizontal |
40-1300(12steps) |
T-slots(No./width/pitch)(mm) |
3/14/70 |
|
Arm travel(mm) |
400 |
|
Main motor power |
Vertical |
3 |
|
Horizontal |
4kw |
Overall size(mm) |
1700X1550x2250 |
|
Net weight(kg) |
1450 |
supply hydraulic press,radial drilling machine,Pan&Box folder,Shearing machine,rolling machine with high quality and competitive price.hope to cooperate with you.
