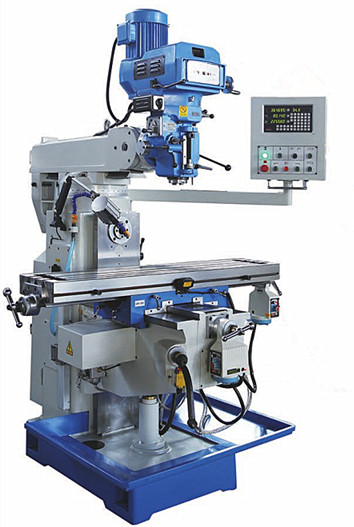

X6325W/X6330W Turret milling machine
Product Description:
Specifications |
Unit |
X6330W |
X6325W |
|
Table size |
mm |
1370x305 |
1370x254 |
|
Table travel (X/Y/Z) |
mm |
800x380x360 |
750x380x360 |
|
Spindle taper |
vertical |
|
R8 |
R8 |
|
horizontal |
|
NT40 |
NT40 |
Distance between horizontal nose and table surface |
mm |
0-380 |
0-400 |
|
Distance between spindle axis and ram surface |
mm |
210 |
210 |
|
Spindle speed range |
Vertical |
r/min |
60-4200(variable) |
50-3750(variable) |
|
|
|
66-4540(16steps) |
66-4540(16steps) |
|
Horizontal |
|
40-1300(12steps) |
40-1300(12steps) |
T-slots(No./width/pitch) |
mm |
3/16/65 |
3/16/65 |
|
Arm travel |
mm |
400 |
400 |
|
Main motor power |
Vertical |
HP |
3 |
3 |
|
Horizontal |
|
3kw |
3kw |
Overall size |
mm |
1700x1600x2250 |
1700x1600x2250 |
|
Net weight |
kg |
1450 |
1380 |
