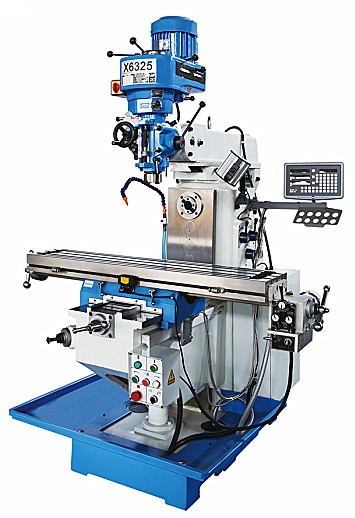

X6325 Turret milling machine
    X6325 Turret milling machine

Product Description:

Model

X6325

Table size(mm)

1270x254

Table travel (X/Y/Z)(mm)

850X400X450

Spindle taper

Vertical

R8/NT30



Horizontal

NT40

Distance between horizontal nose and table surface

0-400(mm)

Distance between spindle axis and ram surface

270

Spindle speed range

Vertical

variable

80-4200





16steps

66-4540



Horizontal  12steps

40-1300

T-slots(No./width/pitch)(mm)

3/16/65

Arm travel(mm)

400

Main motor power

Vertical

3HP



Horizontal

4Kw

Overall size(mm)

1600x1550x2150

Net weight(kg)

1380
