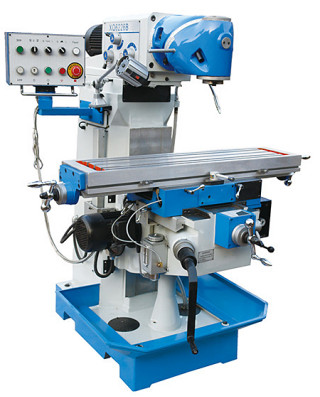

X6232A milling machine
Product Description:
Model |
X6232A |
XQ6226B |
Head movement |
360° |
360° |
Spindle speeds |
11steps 35-1600rpm |
11steps 35-1600rpm |
Table size(mm) |
1250x320 |
1120x260 |
Table travel(horizontal/cross/vertical)(mm) |
600/300/400 |
600/270/600 |
Feeding range of longitudinal,cross travel(mm) |
22-555 |
22-555 |
T slot number/width/distance(mm) |
3/14/70 |
3/14/70 |
X,Y axis rapid feed speed(mm/min) |
1080 |
1080 |
Z axis rapid feed speed(mm/min) |
590 |
590 |
Z axis motor power(W) |
750 |
750 |
Milling head moving(vertical) |
55° Dovetail rail |
55° Dovetail rail |
Cross slide way |
rectangular |
rectangular |
Longitudinal slide way |
Dovetail |
Dovetail |
Main motor power(Kw) |
2.2(H) |
2.2(H) |
Auto feeding of Z-Axis |
560 |
560 |
Main motor power(Kw) |
2.2 |
2.2 |
X Y axis driving motor(W) |
750W |
750W |
Overall dimension(mm) |
1700x1560x1730 |
1655x1500x2270 |
NW/GW(Kg) |
1450/1550 |
1300/1400 |
