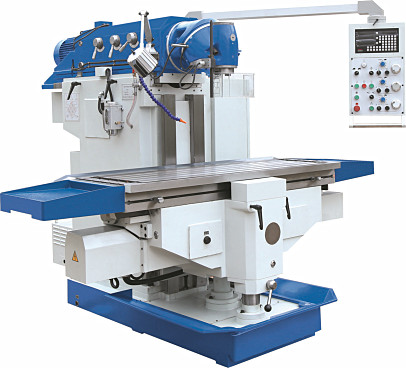

X5750 milling machine
Product Description:
Specifications |
Unit |
X5750 |
X5750A |
Table size |
mm |
500*1600 |
500*2000 |
T-slots(NO./width/pitch) |
mm |
5*18*80 |
|
Table travel (X/Y/Z) |
mm |
1200*700*500 |
1400*700*500 |
Swivel angle of milling head |
- |
360° |
|
Spindle taper |
- |
ISO50 |
|
Spindle speed range |
r.p.m |
(27) 30-2050 |
|
Table feed(X/Y/Z) |
mm/min |
10-1000/10-1000/5-500 |
|
Table rapid speed |
|
2200/2200/1100 |
|
Distance between spindle nose and table surface |
mm |
50-550 |
|
Distance from spindle center line to column |
mm |
28-728 |
|
Main motor power |
Kw |
7.5 |
|
Feed motor |
Kw |
AC servo motor X/Y:15NM; Z: 18NM |
|
Max load |
Kg |
1800 |
1800 |
Overall size |
mm |
2475*2260*2180 |
2986*2260*2180 |
weight |
kg |
5000 |
5500 |
