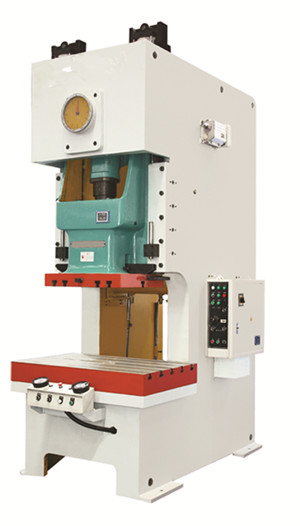

JH21 Mechanical Press
Product Description:
Item
|
JH21-45
|
JH21-63
|
JH21-80
|
JH21-100
|
|
Nominal force(KN)
|
450
|
630
|
800
|
1000
|
|
Stroke under nominal force(mm)
|
4
|
4
|
5
|
5
|
|
Slide block stroke(mm)
|
100
|
120
|
140
|
140
|
|
Number of stroke(times/mm)
|
80
|
70
|
60
|
50
|
|
Max die set height(mm)
|
270
|
300
|
320
|
320
|
|
Die set height adjustment(mm)
|
60
|
80
|
80
|
90
|
|
Distance from slide block center to the frame(mm)
|
230
|
300
|
300
|
350
|
|
Workable dimensions(F·B×L·R)(mm)
|
440*810
|
580*900
|
580*1000
|
650*1000
|
|
Dimensions of worktable(mm)
|
Φ100
|
Φ180
|
Φ180
|
Φ160
|
|
Thickness of bolster(mm)
|
110
|
80
|
90
|
110
|
|
Dimensions of slide block(F·B×L·R)(mm)
|
340*410
|
400*480
|
420*560
|
480*580
|
|
Dimensions of slide block(F·B×L·R)(mm)
|
Φ40*60
|
Φ50*80
|
Φ50*80
|
Φ65*80
|
|
Distance between columns of body(mm)
|
550
|
560
|
640
|
640
|
|
Motor
|
Type
|
Y132S-4
|
Y132S-4
|
Y132M-4
|
Y132M-4
|
|
Power
|
5.5
|
5.5
|
7.5
|
7.5
|
Outline dimension(F·B×L·R×H)(mm)
|
139*112*231
|
175*117*256
|
175*130*278
|
210*139*300
|
|
Net weight (kg)
|
3450
|
5400
|
7000
|
8500
|
supply hydraulic press,radial drilling machine,Pan&Box folder,Shearing machine,rolling machine with high quality and competitive price.hope to cooperate with you.
