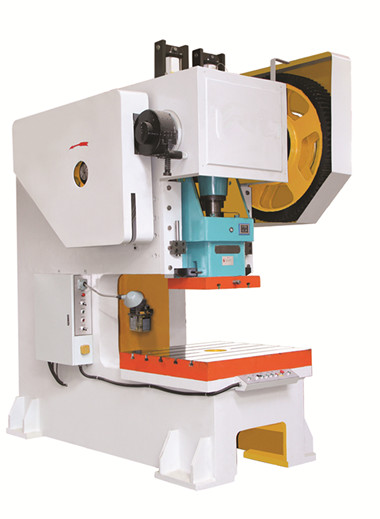

JC21S Mechanical Press
Product Description:
Item
|
Unit
|
JC21S-16
|
JC21S-25
|
JC21S-40
|
JC21S-63
|
JC21S-80
|
JC21S-100
|
|
Nominal force
|
kN
|
160
|
250
|
400
|
630
|
800
|
1000
|
|
Stroke under nominal force
|
mm
|
2
|
2.5
|
4
|
4
|
5
|
5
|
|
Slide block stroke
|
mm
|
70
|
70
|
80
|
80
|
100
|
100
|
|
Number of stroke
|
times/min
|
110
|
65
|
50
|
50
|
50
|
40
|
|
Max die set height
|
mm
|
200
|
200
|
230
|
250
|
300
|
300
|
|
Die set height adjustment
|
mm
|
30
|
30
|
40
|
50
|
60
|
80
|
|
Distance from slide block center to the frame
|
mm
|
710
|
710
|
710
|
710
|
800
|
800
|
|
Workable dimensions(F·B×L·R)
|
mm
|
400*600
|
400*600
|
420*650
|
440*670
|
470*750
|
570*860
|
|
Dimensions of worktable
|
mm
|
Φ120
|
Φ130
|
Φ180
|
Φ180
|
Φ180
|
Φ180
|
|
Thickness of bolster
|
mm
|
50
|
50
|
70
|
70
|
80
|
90
|
|
Dimensions of slide block(F·B×L·R)
|
mm
|
170*220
|
170*220
|
210*250
|
240*280
|
260*300
|
360*450
|
|
Size of the handle hole(Diameter×Depth)
|
mm
|
Φ40*60
|
Φ40*60
|
Φ50*70
|
Φ50*70
|
Φ60*80
|
Φ60*80
|
|
Distance between columns of body
|
mm
|
200
|
250
|
280
|
320
|
360
|
460
|
|
Motor
|
Type
|
|
Y100L-6
|
Y100L-4
|
Y112M-4
|
Y132S-4
|
Y132S-4
|
Y132M-4
|
|
Power
|
kw
|
2.2
|
3
|
4
|
5.5
|
5.5
|
7.5
|
Outline dimension(F·B×L·R×H)
|
cm
|
140*78*195
|
189*80*195
|
197*110*230
|
198*110*235
|
226*126*245
|
243*140*285
|
|
Net weight
|
Kg
|
2050
|
2400
|
3820
|
4650
|
6100
|
7200
|
