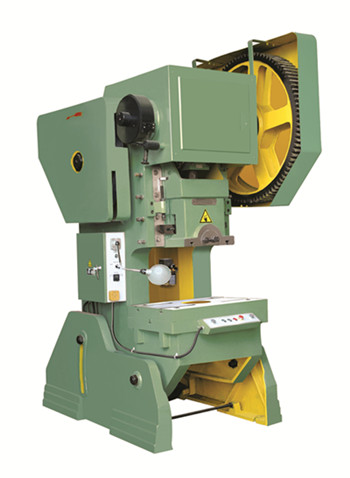

JB23 Mechanical Press
Product Description:
Item
|
Unit
|
J23-16
|
J23-25
|
J23-40
|
J23-63
|
J23-63A
|
J23-80
|
J23-100
|
|
Nominal force
|
kN
|
160
|
250
|
400
|
630
|
630
|
800
|
1000
|
|
Stroke under nominal force
|
mm
|
2
|
2.5
|
4
|
4
|
4
|
5
|
5
|
|
Slide block stroke
|
mm
|
50
|
70
|
80
|
80
|
80
|
100
|
100
|
|
Number of stroke
|
times/min
|
140
|
65
|
50
|
50
|
50
|
50
|
40
|
|
Max die set height
|
mm
|
170
|
200
|
230
|
250
|
300
|
300
|
300
|
|
Die set height adjustment
|
mm
|
30
|
30
|
45
|
50
|
50
|
60
|
80
|
|
Distance from slide block center to the frame
|
mm
|
160
|
200
|
220
|
250
|
250
|
260
|
310
|
|
Workable dimensions(F·B×L·R)
|
mm
|
320*460
|
350*520
|
390*630
|
420*650
|
470*750
|
470*750
|
570*860
|
|
Dimensions of worktable hole
|
mm
|
Φ120
|
Φ120
|
Φ155
|
Φ180
|
Φ180
|
Φ180
|
Φ180
|
|
Thickness of bolster
|
mm
|
45
|
50
|
70
|
70
|
80
|
80
|
90
|
|
Dimensions of slide block(F·B×L·R)
|
mm
|
120*180
|
170*220
|
210*250
|
240*280
|
270*360
|
260*300
|
360*450
|
|
Size of the handle hole(Diameter×Depth)
|
mm
|
Φ40*60
|
Φ40*60
|
Φ50*70
|
Φ50*70
|
Φ50*70
|
Φ60*80
|
Φ60*80
|
|
Distance between columns of body
|
mm
|
240
|
240
|
330
|
320
|
390
|
300
|
420
|
|
Motor
|
Type
|
|
Y90L-6
|
Y100L-4
|
Y112M-4
|
Y132S-4
|
Y132S-4
|
Y132S-4
|
Y132S-4
|
|
Power
|
kw
|
1.5
|
3
|
4
|
5.5
|
5.5
|
5.5
|
7.5
|
Max. tilting angel of body
|
º
|
25
|
25
|
25
|
25
|
25
|
20
|
20
|
|
Outline dimension
|
cm
|
113*83*189
|
112*86*220
|
160*110*225
|
174*110*256
|
174*118*256
|
185*127*265
|
205*140*285
|
|
Net weight
|
Kg
|
1090
|
2100
|
2960
|
3800
|
4300
|
5015
|
6120
|
