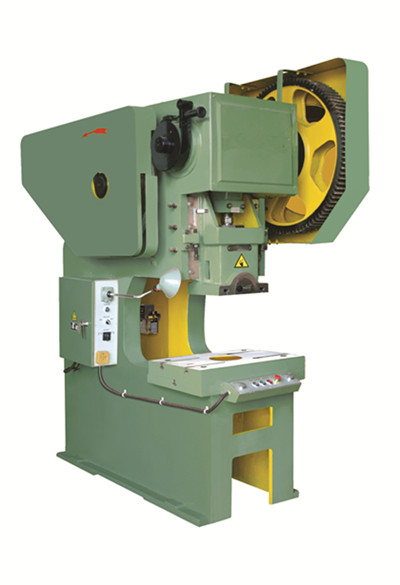

J21S Mechanical Press
Product Description:
Item
|
Unit
|
J21S-16
|
J21S-25
|
J21S-25B
|
J21S-40
|
J21S-63
|
J21S-63A
|
|
Nominal force
|
kN
|
160
|
250
|
250
|
400
|
630
|
630
|
|
Stroke under nominal force
|
mm
|
2.
|
2.5
|
2.5
|
4
|
4
|
4
|
|
Slide block stroke
|
mm
|
70
|
70
|
90
|
80
|
80
|
80
|
|
Number of stroke
|
times/min
|
110
|
65
|
120
|
50
|
50
|
50
|
|
Max die set height
|
mm
|
170
|
200
|
200
|
230
|
250
|
300
|
|
Die set height adjustment
|
mm
|
30
|
30
|
40
|
45
|
50
|
50
|
|
Distance from slide block center to the frame |
mm
|
500
|
500
|
500
|
500
|
600
|
600
|
|
Workable dimensions(F·B×L·R)
|
mm
|
400*600
|
400*600
|
400*600
|
420*650
|
440*670
|
470*750
|
|
Dimensions of worktable hole
|
mm
|
Φ120
|
Φ130
|
Φ130
|
Φ180
|
Φ180
|
Φ180
|
|
Thickness of bolster
|
mm
|
50
|
50
|
70
|
70
|
70
|
80
|
|
Dimensions of slide block(F·B×L·R)
|
mm
|
180*220
|
170*220
|
200*220
|
210*250
|
240*280
|
270*360
|
|
Size of the handle hole(Diameter×Depth)
|
mm
|
Φ40*60
|
Φ40*60
|
Φ40*60
|
Φ50*70
|
Φ50*70
|
Φ50*70
|
|
Distance between columns of body
|
mm
|
200
|
250
|
250
|
250
|
320
|
390
|
|
Motor
|
Type
|
|
Y100L-6
|
Y100L-4
|
Y132S-6
|
Y112M-4
|
Y132S-4
|
Y132S-4
|
|
Power
|
kw
|
2.2
|
3
|
3
|
4
|
5.5
|
5.5
|
Outline dimension(F·B×L·R×H)
|
cm
|
140*780*195
|
145*86*195
|
147*90*210
|
165*110*232
|
175*120*235
|
185*118*248
|
|
Net weight
|
kg
|
1920
|
2410
|
2600
|
3530
|
4250
|
4650
|
