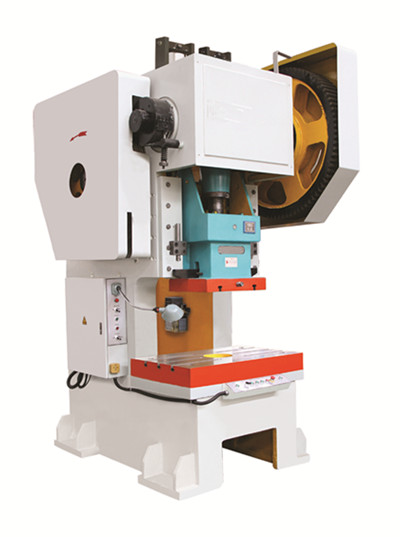

J21 Mechanical Press
Product Description:
Item
|
Unit
|
J21-80
|
J21-100
|
J21-125
|
J21-160
|
|
Nominal force
|
kN
|
800
|
1000
|
1250
|
1600
|
|
Stroke under nominal force
|
mm
|
5
|
5
|
6
|
6
|
|
Slide block stroke
|
mm
|
100
|
100
|
120
|
140
|
|
Number of stroke
|
times/min
|
50
|
40
|
38
|
40
|
|
Max die set height
|
mm
|
300
|
300
|
320
|
350
|
|
Die set height adjustment
|
mm
|
60
|
80
|
100
|
110
|
|
Distance from slide block center to the frame
|
mm
|
260
|
310
|
350
|
380
|
|
Workable dimensions(F·B×L·R)
|
mm
|
470*750
|
570*860
|
650*1000
|
710*1120
|
|
Dimensions of worktable
|
mm
|
Φ180
|
Φ180
|
Φ200
|
Φ220
|
|
Thickness of bolster
|
mm
|
80
|
90
|
110
|
130
|
|
Dimensions of slide block(F·B×L·R)
|
mm
|
260*300
|
360*450
|
420*520
|
440*560
|
|
Size of the handle hole(Diameter×Depth)
|
mm
|
Φ60*80
|
Φ60*80
|
Φ60*80
|
Φ65*90
|
|
Distance between columns of body
|
mm
|
300
|
420
|
520
|
640
|
|
Motor
|
Type
|
|
Y132S-4
|
Y132M-4
|
Y160L-6
|
Y180L-6
|
|
Power
|
kw
|
5.5
|
7.5
|
11
|
15
|
Outline dimension(F·B×L·R×H)
|
cm
|
165*127*245
|
182*140*267
|
190*165*340
|
204*1770*320
|
|
Net weight
|
Kg
|
5200
|
6300
|
9800
|
13500
|
