Model |

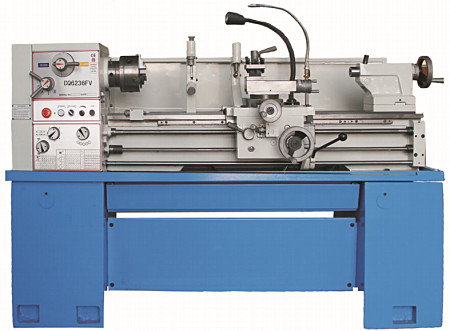

CQ6236FV x1000 |
CQ6240FV x1000 |
Max Swing over bed |
356mm |
400mm |
Max swing over cross slide |
220mm |
264mm |
Max swing in gap |
506mm |
550mm |
Max length of workpiece |
1000mm |
|
Width of bed |
206mm |
|
Spindle speed range |
30-550rpm/155-3000rpm |
|
Spindle bore |
Φ38mm or Φ51mm |
|
Spindle nose |
D4 or D5 |
|
Taper of spindle bore |
MT5 or MT6 |
|
Centre height |
178mm |
200mm |
Threads metric pitches |
0.4-7mm/28kinds(metric lathe) 0.45-7.5mm/22kinds(inch lathe) |
|
Threads imperial pitches |
4-56T.P.I/28kinds(metric lathe) 4-112T.P.I/40kinds(inch lathe) |
|
Compound rest travel |
90mm |
|
Cross slide travel |
150mm |
|
Max section of tool |
16x16mm |
|
Longitudinal feeds range |
0.043-0.653mm/rev(metric lathe)0.0012-0.0297inch/rev(inch lathe) |
|
Cross feeds range |
------------------------------------- |
|
External diameter |
45mm |
|
Max travel |
100mm |
|
Taper of bore |
MT3 |
|
Main Motor power |
4KW |
|
Coolant pump power |
40W |
|
Package size |
1950x750x1500mm |
|
Net weight |
700KG |
