Model

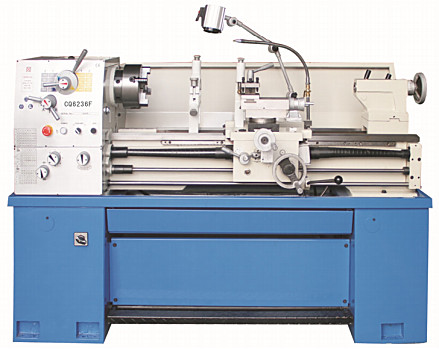

CQ6236F x1000

CQ6240F x1000

Max Swing over bed

356mm

400mm

Max swing over cross slide

220mm

264mm

Max swing in gap

506mm

550mm

Max length of workpiece

1000mm

Width of bed

206mm

Spindle speed range

(16 changes) 45-1800rpm

Spindle bore

Φ38mm or Φ51mm

Spindle nose

D4 or D5

Taper of spindle bore

MT5 or MT6

Centre height

178mm

200mm

Threads metric pitches

   0.4-7mm/28kinds(metric lathe) 0.45-7.5mm/22kinds(inch lathe)

Threads imperial pitches

4-56T.P.I/28kinds(metric lathe)  4-112T.P.I/40kinds(inch lathe)

Compound rest travel

90mm

Cross slide travel

150mm

Max section of tool

16x16mm

Longitudinal feeds range

       0.043-0.653mm/rev(metric lathe)0.0012-0.0297inch/rev(inch lathe)

Cross feeds range

                               -------------------------------------

External diameter

45mm

Max travel

100mm

Taper of bore

MT3

Main Motor power

1.5/2.4KW

Coolant pump power

40W

Package size

1950x750x1500mm

Net weight

700KG
