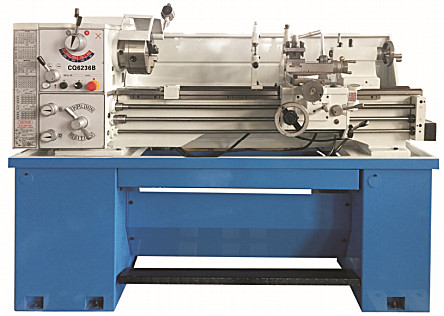

CQ6236B lathe machine
    CQ6236B lathe machine

Product Description:



Model

CQ6236B x750/1000

Max Swing over bed

360mm

Max swing over cross slide

212mm

Max swing in gap

491mm

Max length of workpiece

750 or 1000mm

Width of bed

187mm

Spindle speed range

70-2000rpm or 90-2000rpm

Spindle bore

Φ38mm or Φ51mm

Spindle nose

D1-4’’ or D1-5’’

Taper of spindle bore

MT5 or MT6

Centre height

178mm

Threads metric pitches

0.4-7mm/32kinds

Threads imperial pitches

5-56T.P.I/32kinds

Threads diameter pitches

8-120DP/32kinds

Threads module pitches

0.2-3.5MP/27kinds

Compound rest travel

90mm

Cross slide travel

170mm

Max section of tool

16x16mm

Longitudinal feeds range

0.082-2.713mm/rev(metric lathe) 0.0032-0.1068inch/rev(inch lathe)

Cross feeds range

0.018-0.746mm/rev(metric lathe) 0.0011-0.0367inch/rev(inch lathe)

External diameter

32mm

Max travel

100mm

Taper of bore

MT3

Main Motor power

1.5KW

Coolant pump power

40W

Package size

1950x750x1500mm

Net weight

550KG/600KG
