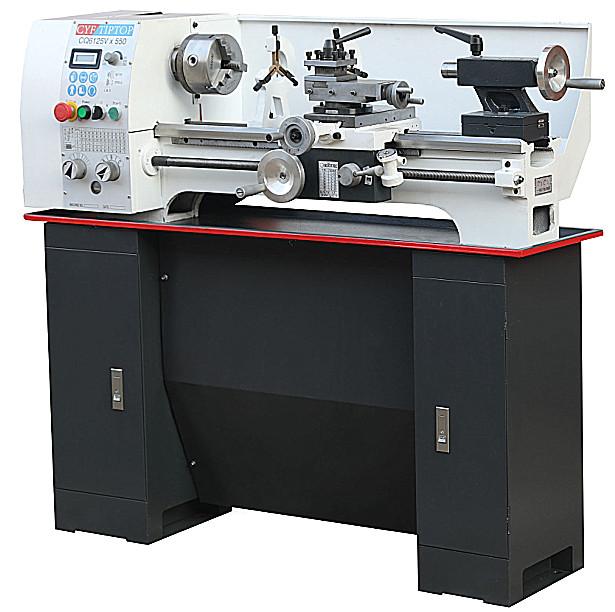

CQ6125V CQ6128V lathe
    CQ6125V CQ6128V lathe

Product Description:

Model

CQ6125VX550

CQ6128VX660

Max Swing over bed

250mm

280mm

Max swing over cross slide

156mm

182mm

Max length of work pieces

  550mm

660mm

Taper of spindle bore

MT4

Spindle hole

26mm

Spindle speed range

100-800rpm 160-1300rpm 250-2000rpm

Longitudinal feed per revolution of spindle

0.063-0.35mm/r

Range of inch threads to be cut

8-72T.P.L(32kinds)

Maximum tool size

0.25-3.5mm(18kinds)

Range of metric threads to be cut

12x12mm

Diameter of tail stock sleeve

32mm

Taper of tail stock sleeve

MT2

MT2 or MT3

Max travel of tail stock sleeve

65mm

Motor frequency

5hz-100hz

Motor power

              0.75kw(1HP)

Package size

140x57x56.5cm

140x57x63cm

N.W/G.W

170/220kg

190/240kg
