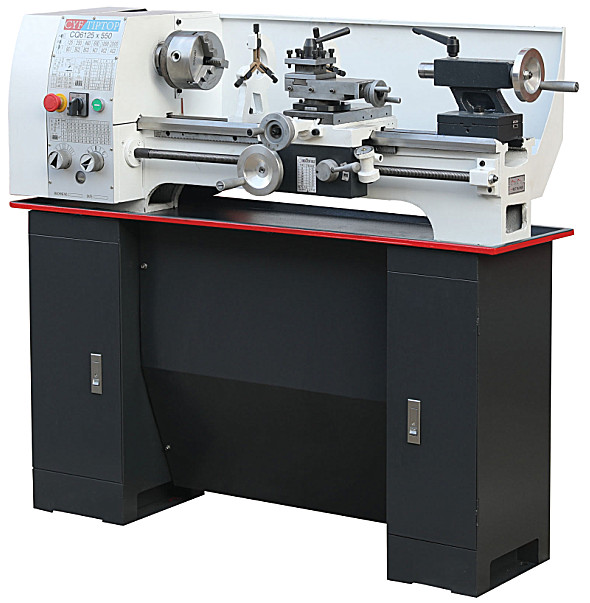

Model

CQ6125X550

CQ6128X660

Max Swing over bed

254

280

Max swing over cross slide

156

182

Max length of work pieces

 550

660

Taper of spindle bore

MT4

Spindle hole

26mm

Spindle speed range

125-2000rpm(50hz) 150-2400rpm(60hz)

Longitudinal feed per revolution of spindle

0.063-0.35mm/r

Range of inch threads to be cut

8-72T.P.L(32kinds)

Maximum tool size

0.25-3.5mm(18kinds)

Range of metric threads to be cut

12x12mm

Diameter of tail stock sleeve

32mm

Taper of tail stock sleeve

MT2

MT2 or MT3

Max travel of tail stock sleeve

65mm

Motor frequency

50hz or 60hz

Motor power

              0.75kw(1HP)

Package size

140x57x56.5cm

140x57x63cm

N.W/G.W

150/200kg

180/230kg
