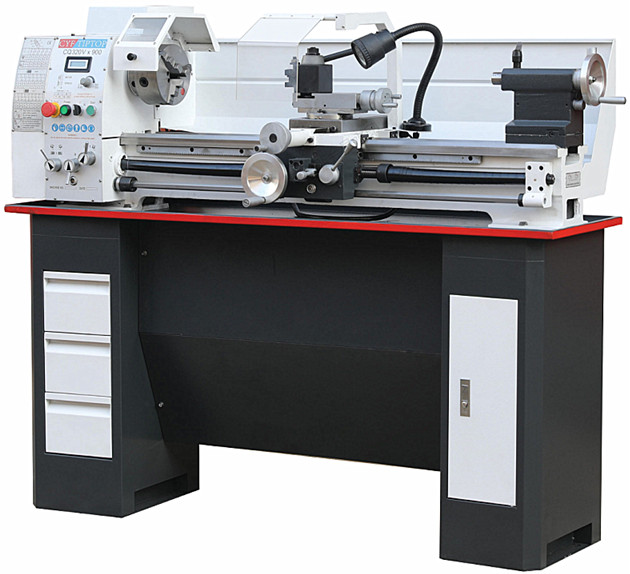

CQ320V lathe machine
Product Description:
Model |
CQ290VX750 |
CQ320Vx900 |
Max Swing over bed |
290mm |
320mm |
Max swing over cross slide |
185mm |
200mm |
Max length of work pieces |
750mm |
900mm |
Taper of spindle bore |
MT5 |
|
Spindle hole |
38mm |
|
Spindle speed range |
75-500rpm 300-2000rpm |
|
Longitudinal feed per revolution of spindle |
0.017-0.25mm/r |
|
Transverse feed per revolution of spindle |
0.07-0.52mm/r |
|
Range of inch threads to be cut |
8-56T.P.L(21kinds) |
|
Maximum tool size |
0.20-3.5mm(18kinds) |
|
Range of metric threads to be cut |
16x16mm |
|
Diameter of tail stock sleeve |
32mm |
|
Taper of tail stock sleeve |
MT3 |
|
Max travel of tail stock sleeve |
80mm |
|
Motor frequency |
5-100hz |
|
Motor power |
1.1kw(1.5kw) |
|
Package size |
1450x750x700mm |
1600x750x700mm |
N.W/G.W |
210/250kg |
260/310kg |
