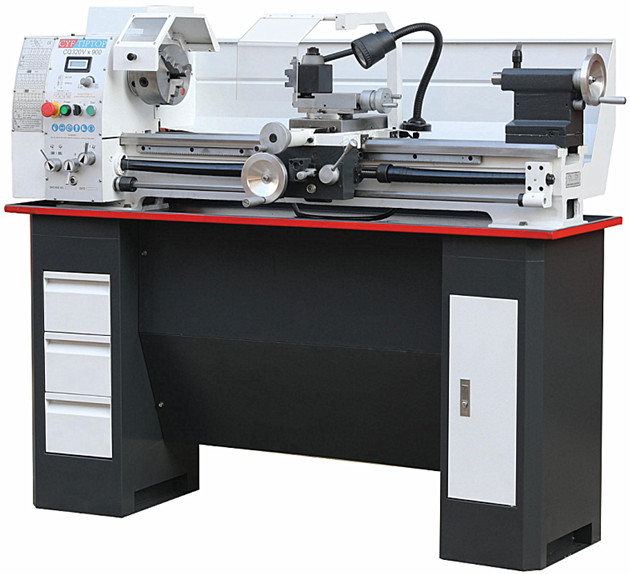

CQ290V lathe machine
    CQ290V lathe machine

Product Description:



Model

CQ290VX750

CQ320Vx900

Max Swing over bed

290mm

320mm

Max swing over cross slide

185mm

200mm

Max length of work pieces

   750mm

900mm

Taper of spindle bore

MT5

Spindle hole

38mm

Spindle speed range

75-500rpm 300-2000rpm

Longitudinal feed per revolution of spindle

0.017-0.25mm/r

Transverse feed per revolution of spindle

0.07-0.52mm/r

Range of inch threads to be cut

8-56T.P.L(21kinds)

Maximum tool size

0.20-3.5mm(18kinds)

Range of metric threads to be cut

16x16mm

Diameter of tail stock sleeve

32mm

Taper of tail stock sleeve

 MT3

Max travel of tail stock sleeve

80mm

Motor frequency

5-100hz

Motor power

                 1.1kw(1.5kw)

Package size

 1450x750x700mm

1600x750x700mm

N.W/G.W

210/250kg

260/310kg
