Model |

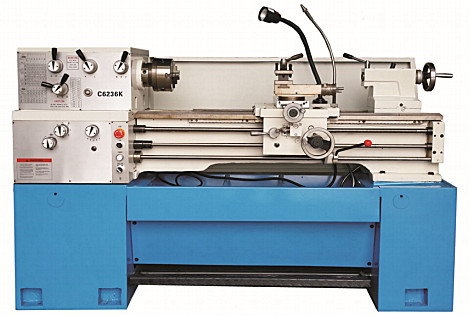

C6236K x1000 |
C6240K x1000 |
Max Swing over bed |
356mm |
400mm |
Max swing over cross slide |
210mm |
232mm |
Max swing in gap |
508mm |
530mm |
Max length of workpiece |
1000mm |
|
Width of bed |
260mm |
|
Spindle speed range |
(12 changes) 40-1800rpm |
|
Spindle bore |
Φ40mm or Φ51mm |
|
Spindle nose |
D4 or D5 |
|
Taper of spindle bore |
MT5 or MT6 |
|
Centre height |
178mm |
200mm |
Threads metric pitches |
0.4-7mm/37kinds(metric lathe) 0.45-7.5mm/22kinds(inch lathe) |
|
Threads imperial pitches |
4-56T.P.I/28kinds(metric lathe) 4-112T.P.I/40kinds(inch lathe) |
|
Compound rest travel |
90mm |
|
Cross slide travel |
210mm |
|
Max section of tool |
16x16mm |
|
Longitudinal feeds range |
0.043-0.653mm/rev/40kinds(metric lathe) 0.0012-0.0294inch/rev/36kinds(inch lathe) |
|
Cross feeds range |
0.024-0.359mm/rev /39kinds |
|
External diameter |
45mm |
|
Max travel |
110mm |
|
Taper of bore |
MT3 |
|
Main Motor power |
2.2KW |
|
Coolant pump power |
40W |
|
Package size |
1990x760x1410mm |
|
Net weight |
1150KG |
1350KG |
