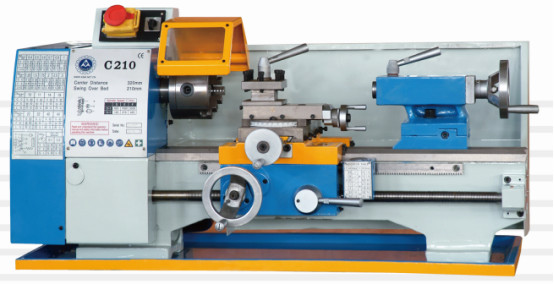

C210 lathe machine
Product Description:
Model |
C210Cx320 |
C210Vx320 |
Max Swing over bed |
210mm |
|
Max swing over cross slide |
110mm |
|
Distance between centers |
320mm |
|
Width of bed |
135mm |
|
Spindle speed range |
125-2000rpm |
125-2000rpm(variable) |
Spindle bore |
Φ20mm |
|
Taper of spindle bore |
MT3 |
|
Taper of tailstock quill |
MT2 |
|
Metric threads can be cut |
0.4-3mm |
|
Inch thread can be cut |
10-44TPI |
|
Range of longitudinal feeds |
0.1-0.2mm/rev |
|
Max travel of cross slide |
315mm |
|
Max travel of top slide |
110mm |
|
Max travel of tailstock quill |
70mm |
|
Tailstock sleeve travel |
75mm |
|
Motor power |
550W |
750W |
Package size |
935x555x545mm |
|
N.W/G.W |
105/143KG |
|
Foot stand dimension |
500x300x750 |
|
Foot stand N.W/G.W |
44/48KG |
