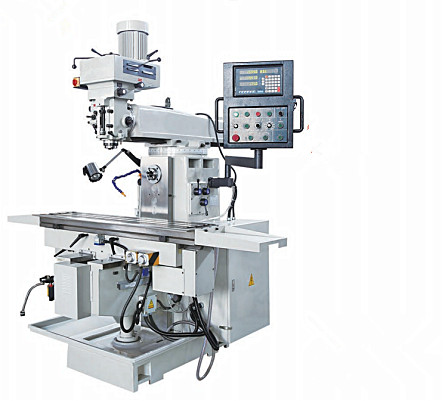

Specifications

Unit

7VM

Table size

mm

1500x330

Table travel (X/Y/Z)

mm

1000x380x400

Rapid speed of table(X/Y)

mm/min

X:1500 Y:1500

Spindle taper

vertical

NT40

horizontal

Table feed(X/Y)

mm/min

20-1500

Distance between horizontal nose and table surface

mm

0-400

Distance between spindle axis and ram surface

mm

230

Spindle speed range

Vertical

r/min

50-3750(variable)

66-4540(16steps)

Horizontal

45-1318(12steps)

T-slots(No./width/pitch)

mm

3/18/85

Arm travel

mm

550

Main motor power

Vertical

HP

5

Horizontal

4kw

Torque of X/Y axis AC servo motor

N.m

6/6

Overall size

mm

2500x1800x2250

Net weight

kg

2200
